Apple Motors upgrade fuel injection kit for FIAT and Lancia

For my friend in Dubai who has called and tried twice emailed: I didn't get an email yet. Perhaps we can use my yahoo email account: daveapplemotors"at"yahoo"dot"com and dave"at"applemotors.com and put "parts" in subject line, please. replace the "dot" and "at" with . and @ respectively. Also. I have now changed my email filters and I would like to hear from you. Thank you very much.
Electromotive Tec3 full engine management FIAT Spider Turbo with Tec3r used Haltech F9a kit from an X1/9 Haltech in a Maserati Biturbo E

Each kit is installed and tested on a Spider, X1/9 or
Lancia here at Apple Motors before shipping to you.
Complete Easy Bolt-in Haltech or Electromotive Tec3 fuel injection for FIAT and Lancia

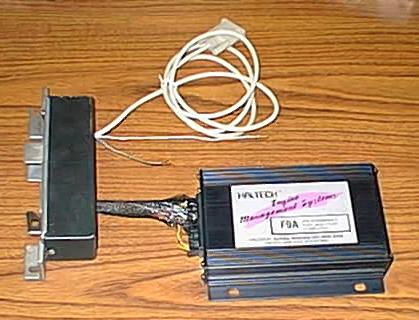

you can see how easy this adapter will install on your car. F9A shown is identical to F10X in size NOT color.

photo of Tec3 Electromotive and wires soon... The adapter will appear slightly different from this one because injector and ignition relays are included. Also crank sensor, sensor mount, coils and ignition wires


1) Mount the computer and adapter in the stock mounting. The stock Bosch wires plug into the adapter on the left.
2) Install fuel pump relay. controlled by blue (shorter) wire in photo
3) Connect the small sensor loom to existing Bosch wires
4) Connect RS232 cable to your PC
When you change to Haltech you remove:

1..a restrictive air flow meter
2..a Bosch computer that thinks about economy foremost
3..the evil (boo, hiss) Bosch double relay;
..... actually just put this stuff into a box and keep it for a while

you gain:

A 30 day money back guarantee* plus below:
Each kit is installed and tested on a Spider or
X1/9 here at Apple Motors before shipping to you.



pictured is the plenum ready to install on any fuel injected FIAT X1/9

1.. more torque, more power, more fun
2.. the ability to change the performance with a laptop
3.. A tuneable Haltech F10 computer.*(see bottom of page) PC software and manual.
4.. pre loaded fuel maps to match your FIAT or Lancia
5.. a simple plug-in interface from Bosch wiring to Haltech computer
6.. throttle body/plenum with sensors pre installed includes new gaskets
7.. all the wiring neccessary Actually only one wire is added and the rest are standard Bosch
8.. 3 foot long RS 232 computer data wire (you won't need an extension wire to PC laptop)
9.. one relay to work the fuel pump.
10.. A bypass pipe that replaces the stock airflow meter and connects to the air filter
11.. fully detailed installation instructions & software maps for stock FIAT and Lancia
12.. email and/or telephone support - as much as you need.

Price of Haltech bolt-on kit with an F10X= $2295

this includes $100 refundable core charge on your throttle body; return yours for a total price outlay of $1995.
Does not include PC laptop.
This kit is easy to install.
There are only 8 bolts for the plenum on X1/9 or the FIAT spider.
The plug in interface, the fuel pump relay and the Haltech computer
take less than 1 hour to install. The fuel pump relay is the technical
part (with all of 4 wires). The throttle body/plenum camber has a map
sensor, an air temp sender and a throttle position sender already installed;
simply bolt the plenum onto the car and plug in the wires.
I don't think anyone would spend over 2 hours total installing the kit. . Electromotive kit will take longer.

You could sell your Bosch airflow meter, double relay, and computer.

If you don't like the tech stuff and your car is stock then install our kit
or pay someone aproximately 2 hours labor to install it ( more for Tec3 ) and
never touch a laptop. Your car will have more torque and horsepower.
We will happily install either kit here at Apple Motors for $160 labor.
Our labor rate is $80/hour.
carbureted car? Buy a complete Bosch fuel injection set from a preowned car. $500 with a new fuel pump and filter.
Call 303-421-0571 for more info

download fuel maps for X1/9 and Maserati BT in Zip format.

For more Mail to: information

To return to Apple Motors home page www.AppleMotors.com
* this is a real 30-days-no-questions-asked-money-back guarantee if you aren't happy with the results then return what you purchased and reinstall your Bosch parts (remember I said to put them into a box for a while). This guarantee excludes freight charges.
**some other Haltech F10 features
waste gate control, turbo timer, shift light, control for second set of injectors,
torque converter lockup, open-close loop, intercooler fan/pump control, water injection, nitrous, etc.
If you desire an ignition AND fuel control system add $600 for E6H or E6K computer and ignition pickup and crank trigger wheel.
